The Shooters Box 300 AAC Blackout Case & Cartridge Gauge - All New Patented Tri-Step Face Design
This item is currently Out of Stock. Please use the 'Notify Me' button below to be informed when the item returns back into stock.
This item is currently Out of Stock. Please use the 'Notify Me' button below to be informed when the item returns back into stock.

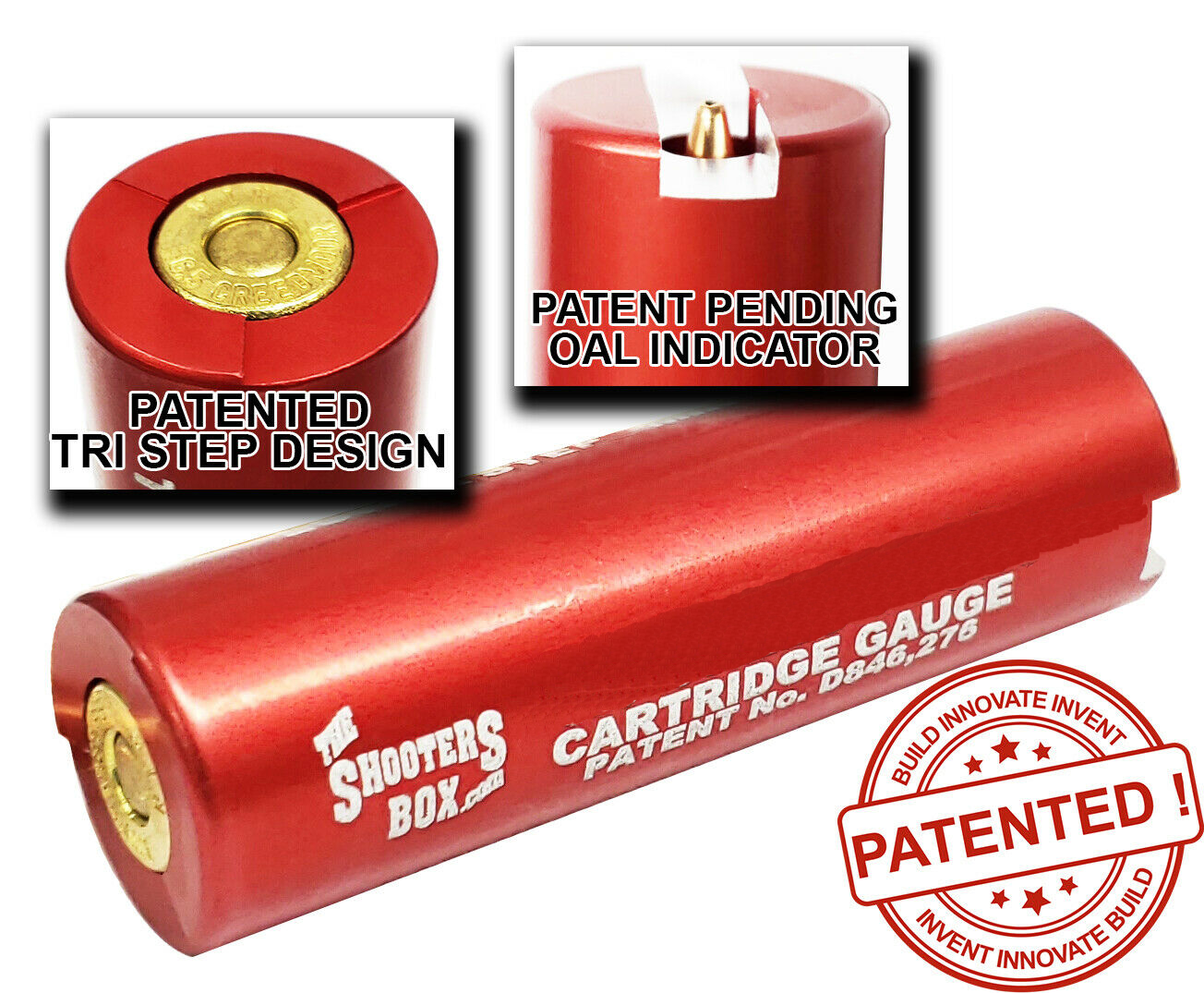

The ALL NEW PATENTED Case and Cartridge Gauge with Tri Step Face Design!
Made from T6 6061 Aircraft Grade Aluminum, beautifully anodized in red colour and built to last a lifetime. Each gauge is manufactured to S.A.A.M.I (Sporting Arms and Ammunition Manufacturers Institute) minimum chamber/headspace specifications. The gauge will measure the maximum cartridge length (full overall length), the minimum and maximum case length, the maximum case diameter and the maximum headspace.
The difference between the top step (face) of the gauge and the middle step shows the maximum allowed chamber headspace.
The middle step shows the maximum allowed case length. A loaded cartridge that is inserted into the gauge should not be higher than the middle step.
The bottom step shows the minimum allowed case length. A loaded cartridge that is inserted into the gauge should not be lower than the bottom step.
A loaded cartridge should fit freely and easily into the gauge. A cartridge that does fit properly may not correspond to the proper chamber dimensions.
Place a clean cartridge into the gauge and make sure that it is completely seated by itself with no assistance to seat it. The head of the brass should sit flush or between the middle and lower steps of the gauge. If the cartridge sits higher than the middle step then your brass might be too long, if it sits lower than the bottom step it might be too short. It's easy to check by eye or with the help of a straight edge or steel rule. With the cartridge in the gauge check the backside to make sure the tip (bullet end) is not protruding outside the back face of the gauge. If the tip of the bullet protrudes from the end of the gauge it is longer than the maximum allowed overall cartridge length. If the cartridge does not easily drop into the gauge without assistance there is most likely something wrong with the dimensions of your cartridge. A cartridge that will not easily fit into the gauge may or may not fit the chamber of your barrel. Keep in mind that most rimless rifle cartridges stop on the 'shoulder' of the case, the cartridge does not stop (sit) on the mouth of the brass when in the chamber of the barrel.
Complete satisfaction guaranteed!
USA Patent No. D846,276 - European Patent No. 005505526-0001 - UK Patent No. 6039401
WARNING!!! NEVER ATTEMPT TO RESIZE LOADED CARTRIDGES. THIS IS EXTREMELY DANGEROUS AND COULD LEAD TO AN ACCIDENTAL DISCHARGE CAUSING INJURY OR DEATH.
In some instances, your cartridge may sit flush with the lower step BUT the brass may be shorter than the SAAMI minimum specifications. In this instance, your ammunition may still fire and function correctly but it is up to you to confirm this will not cause an unsafe condition. It is the reloader's responsibility to determine the cause of incorrectly sized cartridges and to correct it. In some cases, ammunition previously fired with maximum powder loads or with abnormally large barrel chamber diameters may not fit this gauge. This is due to some resizing dies not being able to fully resize the brass cartridge all the way down to its head. Any ammunition shown in pictures is purely for representation purposes and is not included with the purchase of this gauge.
Shipping not available to AU, please try another location.
| SKU | 77728 |
| Brand | The Shooters Box |
| Shipping Weight | 0.1450kg |
| Shipping Width | 0.080m |
| Shipping Height | 0.050m |
| Shipping Length | 0.080m |
| Shipping Cubic | 0.000200000m3 |
The ALL NEW PATENTED Case and Cartridge Gauge with Tri Step Face Design!
Made from T6 6061 Aircraft Grade Aluminum, beautifully anodized in red colour and built to last a lifetime. Each gauge is manufactured to S.A.A.M.I (Sporting Arms and Ammunition Manufacturers Institute) minimum chamber/headspace specifications. The gauge will measure the maximum cartridge length (full overall length), the minimum and maximum case length, the maximum case diameter and the maximum headspace.
The difference between the top step (face) of the gauge and the middle step shows the maximum allowed chamber headspace.
The middle step shows the maximum allowed case length. A loaded cartridge that is inserted into the gauge should not be higher than the middle step.
The bottom step shows the minimum allowed case length. A loaded cartridge that is inserted into the gauge should not be lower than the bottom step.
A loaded cartridge should fit freely and easily into the gauge. A cartridge that does fit properly may not correspond to the proper chamber dimensions.
Place a clean cartridge into the gauge and make sure that it is completely seated by itself with no assistance to seat it. The head of the brass should sit flush or between the middle and lower steps of the gauge. If the cartridge sits higher than the middle step then your brass might be too long, if it sits lower than the bottom step it might be too short. It's easy to check by eye or with the help of a straight edge or steel rule. With the cartridge in the gauge check the backside to make sure the tip (bullet end) is not protruding outside the back face of the gauge. If the tip of the bullet protrudes from the end of the gauge it is longer than the maximum allowed overall cartridge length. If the cartridge does not easily drop into the gauge without assistance there is most likely something wrong with the dimensions of your cartridge. A cartridge that will not easily fit into the gauge may or may not fit the chamber of your barrel. Keep in mind that most rimless rifle cartridges stop on the 'shoulder' of the case, the cartridge does not stop (sit) on the mouth of the brass when in the chamber of the barrel.
Complete satisfaction guaranteed!
USA Patent No. D846,276 - European Patent No. 005505526-0001 - UK Patent No. 6039401
WARNING!!! NEVER ATTEMPT TO RESIZE LOADED CARTRIDGES. THIS IS EXTREMELY DANGEROUS AND COULD LEAD TO AN ACCIDENTAL DISCHARGE CAUSING INJURY OR DEATH.
In some instances, your cartridge may sit flush with the lower step BUT the brass may be shorter than the SAAMI minimum specifications. In this instance, your ammunition may still fire and function correctly but it is up to you to confirm this will not cause an unsafe condition. It is the reloader's responsibility to determine the cause of incorrectly sized cartridges and to correct it. In some cases, ammunition previously fired with maximum powder loads or with abnormally large barrel chamber diameters may not fit this gauge. This is due to some resizing dies not being able to fully resize the brass cartridge all the way down to its head. Any ammunition shown in pictures is purely for representation purposes and is not included with the purchase of this gauge.
